Threads

Every conversation in Reliant is organized into threads. Threads matter most when working with sub-agents and complex workflows.

What is a Thread?

A thread is a sequence of messages—user inputs, AI responses, and tool results. When you start a chat, Reliant creates a root thread for your conversation. When workflows spawn sub-agents or run child workflows, each can get its own thread. This keeps conversations isolated: a research agent’s internal dialogue doesn’t clutter your main conversation.

How Threads Work

Threads are managed automatically by the workflow engine. When a workflow or node executes, it receives a thread from its execution context. Activities like CallLLM and SaveMessage automatically use this thread—you don’t need to pass thread IDs explicitly. Thread behavior is controlled at the workflow and node level using ThreadConfig. This determines whether a child workflow shares its parent’s thread, gets a fresh thread, or forks from the parent’s conversation history.

Thread Modes

Configure thread behavior on workflow or loop nodes using the thread field: inherit (default): Use the parent’s thread. Messages appear in the same conversation. This is how most single-agent interactions work.

- id: call_helper
  workflow: builtin://agent
  thread: inherit  # Share parent's thread

new: Create a fresh, empty thread. The sub-workflow starts with no conversation history. Useful for spawned agents that should work independently.

- id: researcher
  workflow: builtin://agent
  thread:
    mode: new
    inject:
      role: user
      content: "Research the authentication patterns in this codebase"

fork: Copy the parent’s messages into a new thread. The sub-workflow sees the conversation history but writes to its own thread. Changes don’t affect the parent.

- id: reviewer
  workflow: builtin://agent
  thread:
    mode: fork
    inject:
      role: user
      content: "Review the changes above and provide feedback"

Thread Configuration Options

The full ThreadConfig structure:

thread:
  mode: new       # inherit | new | fork
  memo: false     # Reuse thread across loop iterations (default: false)
  inject:         # Message to add to thread before execution
    role: user
    content: "Your task instructions here"

Memo Behavior

In loops, memo controls whether the same thread is reused across iterations:

# Fresh thread each iteration (default)
thread:
  mode: new
  memo: false

# Same thread reused across iterations
thread:
  mode: new
  memo: true

Message Injection

The inject field adds a message to the thread before the child workflow starts. This is how you give instructions to sub-agents:

thread:
  mode: new
  inject:
    role: user
    content: |
      You are Implementation Candidate #1.
      Task: {{nodes.improve_prompt.message.text}}

Inject behavior by mode:

Mode	Behavior
`inherit`	Added on first execution only
`new`	First message in the new thread
`fork`	Added after copied messages

In loops, memo controls inject frequency:

memo: false (default): Fresh thread each iteration, inject added every iteration
memo: true: Thread reused, inject added on first iteration only

# Inject added every iteration (fresh thread each time) - default
thread:
  mode: new
  memo: false
  inject:
    role: user
    content: "Review: {{nodes.planner.response_text}}"

# Inject added once (first iteration), agent accumulates context
thread:
  mode: new
  memo: true
  inject:
    role: user
    content: "Implement the feature described above."

Accessing Thread Data in CEL

The thread.* namespace provides access to the current thread:

Field	Type	Description
`thread.id`	string	Thread identifier (UUID)
`thread.mode`	string	Thread mode (`new`, `inherit`, `fork`)
`thread.forked_from`	string	Parent thread ID if forked
`thread.messages`	array	All messages in the thread
`thread.last_message`	object	Most recent message

# Check if thread has messages
condition: size(thread.messages) > 0

# Access last message content
content: "Previous message: {{thread.last_message.content}}"

Viewing Thread History

The chat interface shows messages from all threads by default, displayed together in chronological order. Sub-agent threads are visually distinguished with an indented left border and a label indicating which thread they belong to (e.g., “Spawn Tool from Main”).

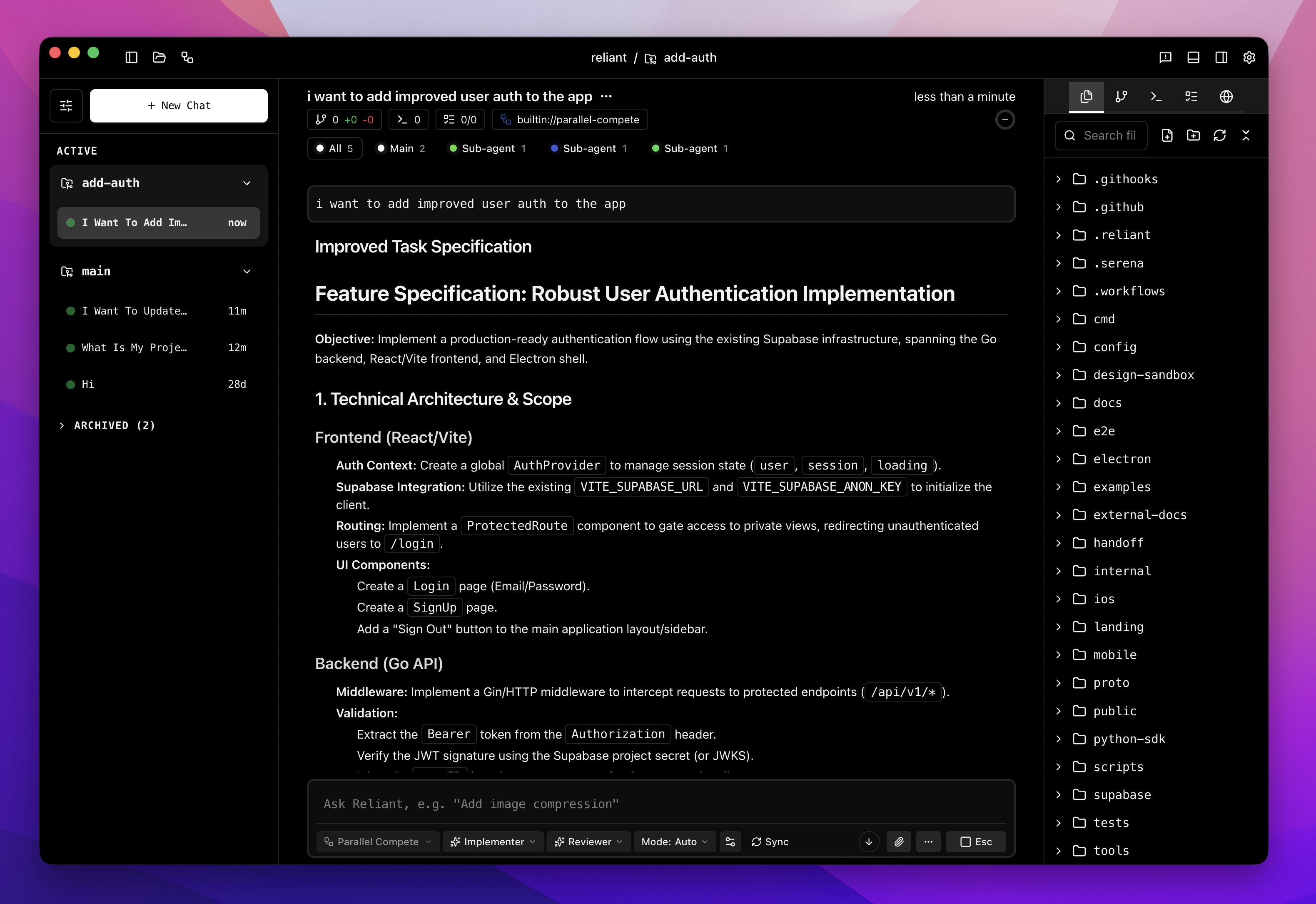

Thread filtering tabs allow you to focus on specific agent conversations

Thread filtering: At the top of the chat, you’ll see thread tabs showing message counts:

All — Messages from all threads combined
Main — Only the main conversation thread
[Sub-agent name] — Only that sub-agent’s thread

Click any tab to filter the view. Useful when you want to focus on a specific sub-agent’s work or see just the main conversation.

Node Output Access

Access completed node outputs via nodes.<id>.*. For detailed CEL expression patterns including loop outputs, qualified IDs for nested nodes, and handling skipped nodes, see the CEL Expressions Reference. Quick examples:

# Access outputs from a completed node
condition: nodes.call_llm.stop_reason == 'end_turn'
content: "Result: {{nodes.run_tests.stdout}}"

# Node inside a loop
nodes.my_loop.inner_node.output

# Check if a node was skipped
condition: has(nodes.optional_step.skipped)

Branching — Exploring alternative conversation paths
Workflow Control — Pause, resume, and interact with running workflows
Spawn Tool — How agents delegate to sub-workflows
Multi-Agent Patterns — Patterns that use multiple threads
CEL Expressions Reference — Complete reference for node outputs and expressions
